Spark Detection Systems

Spark detection system is a fire and explosion prevention technology designed to catch dangerous hot particles in a process line before they can start a fire. The system pairs a highly sensitive detector with an automatic extinguishing response: once a hot particle – a spark, ember, or glowing fragment – is identified inside ductwork or process flow, it is extinguished within milliseconds, long before it reaches storage, filters, or downstream equipment where it could ignite dust, fibers, or other combustible material.Spark detection is one of the most cost-effective layers of protection available for industries that handle combustible dust or fibrous material, because it stops an ignition source before a fire or dust explosion can ever start – rather than reacting after damage has already occurred.

Sparks visible to the human eye are already extremely hot – typically 700°C (1,292°F) or higher. But many common industrial materials, including wood, paper, and textile fibers, can ignite at temperatures as low as 400°C (752°F). That means a hazardous particle can be traveling through your process line, well above its ignition point, without ever glowing or becoming visible.
By the time a spark can be seen with the naked eye, the fire risk has often already passed the point where standard detection would catch it. This is exactly the gap a properly designed spark detection and extinguishing system is built to close: detecting a hot particle at its actual ignition temperature, not at the point where it becomes visible.

Spark detection system operates in two stages:

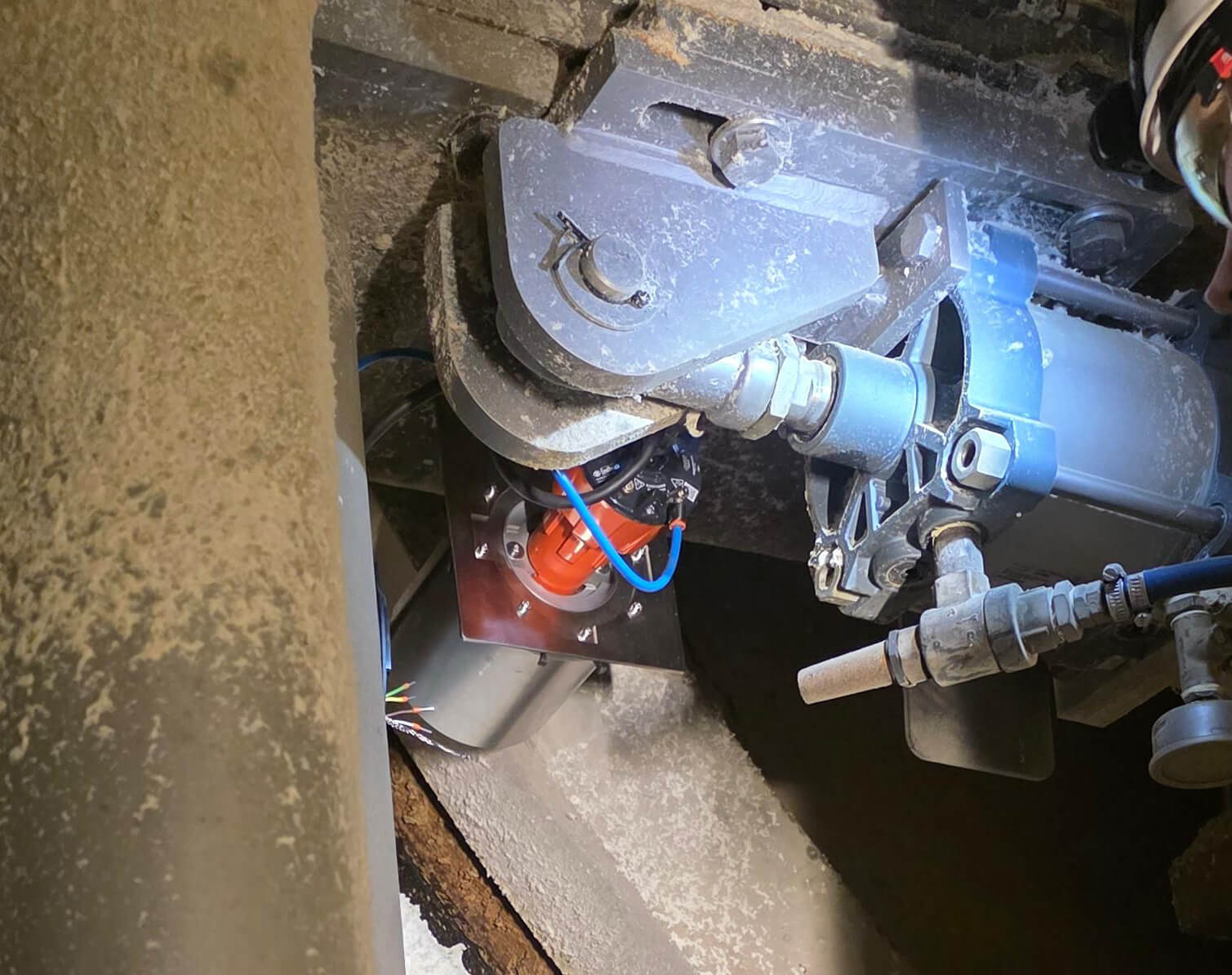

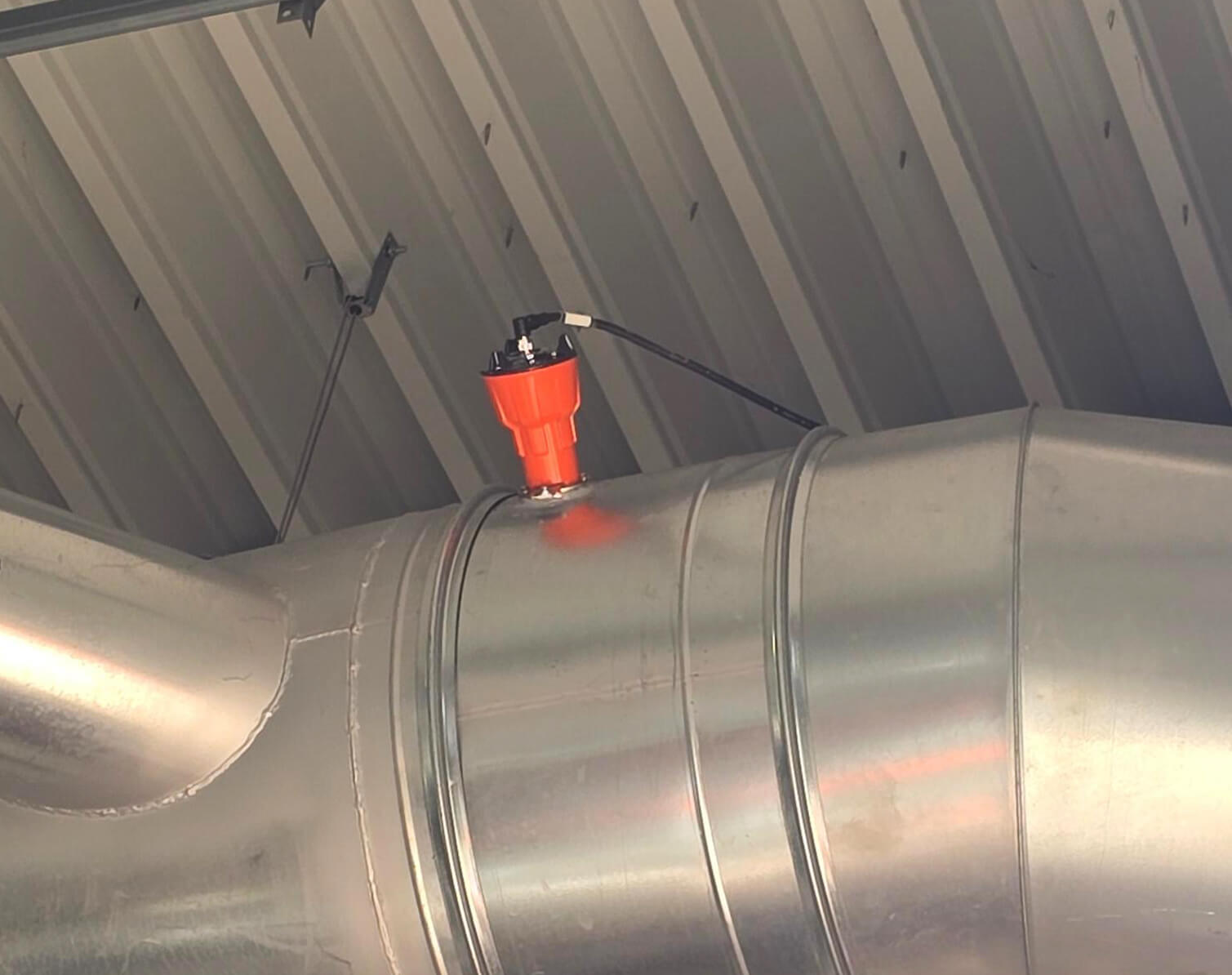

1. DETECTION – Infrared detectors installed inside ducting or process equipment continuously monitor for hot particles, identifying them by heat signature rather than visible light.
2. SUPPRESSION – The moment a hazardous particle is detected, an extinguishing unit (typically a high-speed water nozzle or spark deflection/isolation device) is triggered automatically, extinguishing the particle within milliseconds – before it can reach a baghouse, silo, storage bin, or other point where a fire or dust explosion could develop.

This combination of early hot-particle detection and immediate automated response is what separates a true spark detection system from passive fire protection like sprinklers, which only react once a fire has already started.

Not all spark detectors are built the same, and the technology behind a system determines how early – and how reliably – it can catch a hazardous particle. Our spark detection systems combine infrared sensing, high-speed particle tracking, and material-specific detector selection to close the gap that conventional detectors miss. Explore how each piece works below.

A particle only becomes visible to the human eye once it reaches roughly 700°C or higher (per Wien’s displacement law and Planck’s law of radiation). Below that temperature, a dangerously hot particle looks completely “black” – indistinguishable from cold material by sight alone.

Since most combustible materials ignite well below 700°C, a large share of industrial fire incidents originate from these invisible hot black particles rather than visible sparks. Friction-related fires in particular – from bearings, blockages, or foreign metal objects in a process line – very often start this way: generating hot black particles long before anything glows.

This is precisely why relying on visible-light spark detectors, or on manual observation, leaves a significant blind spot. A spark detection system built on true infrared detection is designed specifically to close that gap.

Every combustible material has its own ignition temperature and energy threshold, and these values directly shape how a spark detection system should be configured. A detector that performs well for one material may be too slow or too insensitive for another with a lower minimum ignition energy. The table below outlines cloud and layer ignition temperatures, along with minimum ignition energy, for common materials handled in industrial processes.

Spark detection systems are essential wherever combustible dust, fiber, or particulate is processed, stored, or transported through ductwork. From woodworking and biofuel production to food processing and paper manufacturing, these industries share a common risk: a single hot particle can trigger a fire or dust explosion within seconds. Below are the sectors where spark detection is standard practice for protecting people, equipment, and production uptime.
